PRBD
(D Alkaline Battery)



Printable Version








Specifications

Type Designation ANSI-13A, IEC-LR20
Chemical System (-) Zn︱KOH-H2O︱MnO2 (+)
Mercury, cadmium, and lead are not added in the battery.
Nominal Voltage: 1.5V
Weight Approx. 142g
Nominal Capacity Approx. 15500mAh (20±2ºC, 10Ω-4h/d, e.v.=0.9V)
Jacket Foil Label

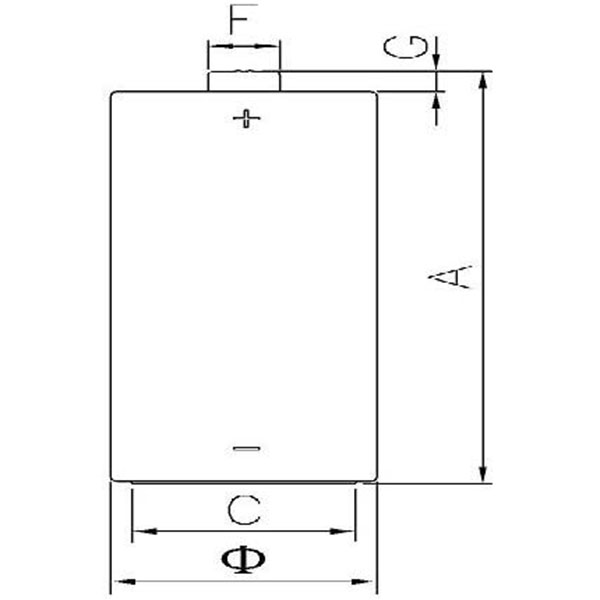

Dimensions

/ MAX MIN
mm in mm in
Ф 33.5 1.319 32.8 1.291
A 61.4 2.417 60.0 2.362
C / / 25.0 0.984
F 9.0 0.354 / /
G / / 2.0 0.079

Notes:

  • Store in cool, dry place before use
  • It is recommended that the storage temperature be lower than 30ºC (86ºF)
  • Do not keep batteries at relative humidity of 65% or above for long time
  • Up to 10-year shelf life from date of manufacture (under proper storage cond.)

Electrical Characteristics:

Unless otherwise stated, all measurements are to be performed at a Standard Environment of 20±2ºC (64.4-71.6ºF), 60±15%R.H.


Electrical Specifications

Discharge Condition

IEC60086-2:
2011
Standard

Discharge Time

Load

Test Mode

End
Voltage

Initial

 After 1 year at 20±2ºC

MAD

Normal

MAD

Normal

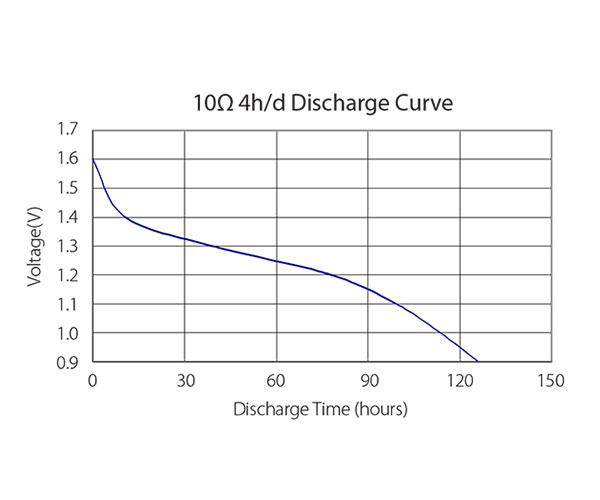

10Ω 4h/d 0.9V 85h 120h 126h 115h 121h

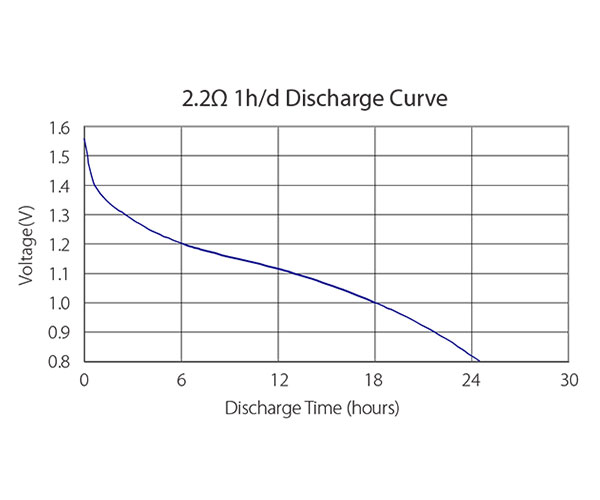

2.2Ω 1h/d 0.8V 16h 23.5h 25h 22.5h 23.9h

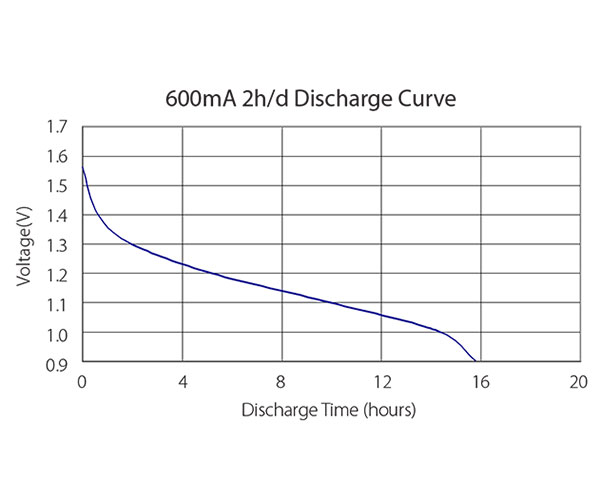

600mA 2h/d 0.9V 11h 14.8h 15.5h 13.8h 14.4h

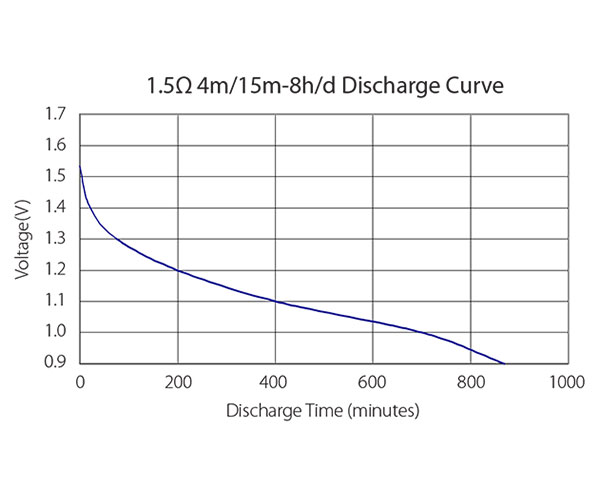

1.5Ω 4m/15m-8h/d 0.9V 520m 830m 880m 780m 825m

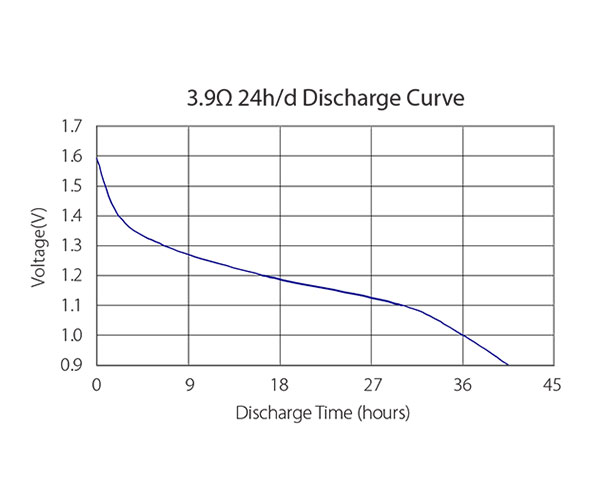

3.9Ω
reference 		24h/d 0.9V / 38h 40h 36h 38h
Remarks • MAD - Minimum Average Discharge (h-hour) (d-day)
• Actual performance for each lot may be slightly different from normal performance.
