PRBC
(C Alkaline Battery)



Printable Version








Specifications

Type Designation ANSI-13A, IEC-LR20
Chemical System (-) Zn︱KOH-H2O︱MnO2 (+)
Mercury, cadmium, and lead are not added in the battery.
Nominal Voltage: 1.5V
Weight Approx. 68g
Nominal Capacity Approx. 7600mAh (20±2ºC, 20Ω-4h/d, e.v.=0.9V)
Jacket Foil Label

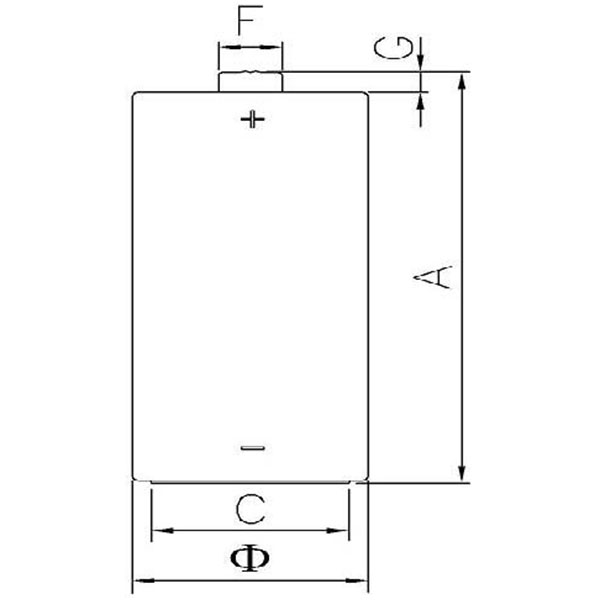

Dimensions

/ MAX MIN
mm in mm in
Ф 25.7 1.011 25.2 0.992
A 50.0 1.969 49.2 1.937
C / / 18.2 0.717
F 6.8 0.268 / /
G / / 2.0 0.079

Notes:

  • Store in cool, dry place before use
  • It is recommended that the storage temperature be lower than 30ºC (86ºF)
  • Do not keep batteries at relative humidity of 65% or above for long time
  • Up to 10-year shelf life from date of manufacture (under proper storage cond.)

Electrical Characteristics:

Unless otherwise stated, all measurements are to be performed at a Standard Environment of 20±2ºC (64.4-71.6ºF), 60±15%R.H.


Electrical Specifications

Discharge Condition

IEC60086-2:
2011
Standard

Discharge Time

Load

Test Mode

End
Voltage

Initial

 After 1 year at 20±2ºC

MAD

Normal

MAD

Normal

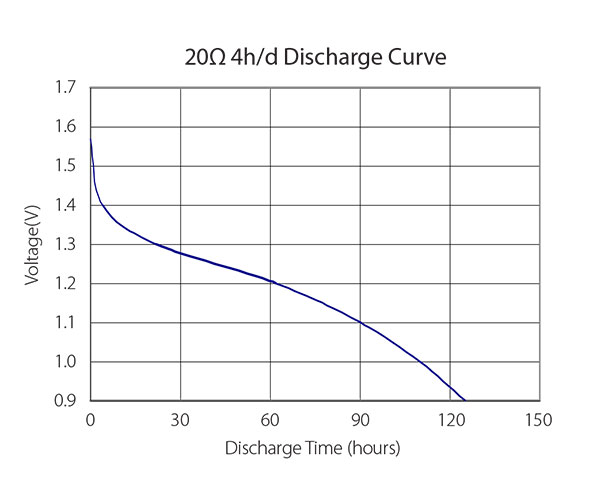

20Ω 4h/d 0.9V 80h 120h 125h 115h 120h
3.9Ω 1h/d 0.8V 14h 20.3h 21.8h 19.5h 20.8h
400mA 1h/d 0.9V 8h 12h 13.2h 11h 12h

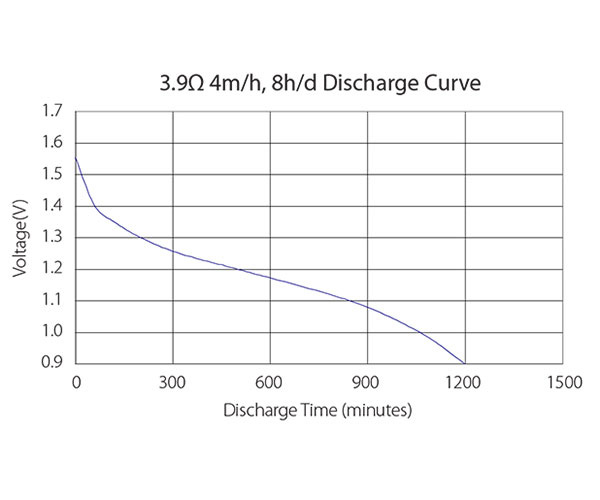

3.9Ω 4m/h-8h/d 0.9V 800m 1190m 1250m 1130m 1190m

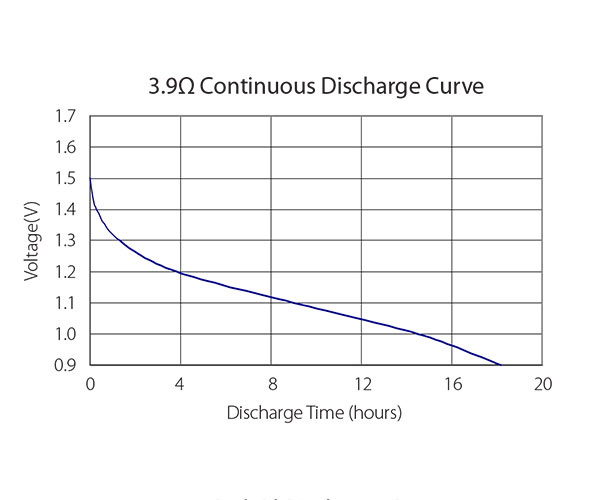

3.9Ω
reference 		24h/d 0.9V / 17.1h 18.3h 16.1h 17.3h
Remarks • MAD - Minimum Average Discharge (h-hour) (d-day)
• Actual performance for each lot may be slightly different from normal performance.
