PRBAA
(AA Alkaline Battery)



Printable Version











Specifications

Type Designation ANSI-15A , IEC-LR6
Chemical System (-) Zn︱KOH-H2O︱MnO2 (+)
Mercury, cadmium, and lead are not added in the battery.
Nominal Voltage: 1.5V
Weight Approx. 23.2g
Nominal Capacity Approx. 2750mAh (20±2ºC, 43Ω-4h/d, e.v.=0.9V)
Jacket Foil Label

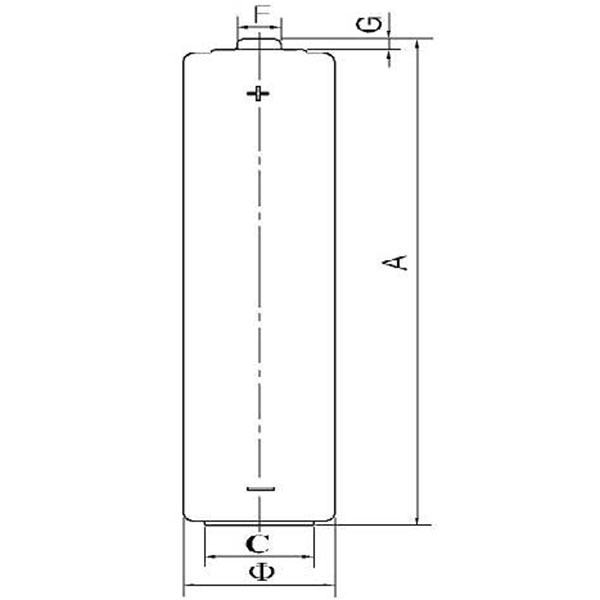

Dimensions

/ MAX MIN
mm in mm in
Ф 14.3 0.563 13.9 0.547
A 50.4 1.984 49.7 1.957
C / / 9.0 0.354
F 5.2 0.205 / /
G / / 1.3 0.051

Notes:

  • Store in cool, dry place before use
  • It is recommended that the storage temperature be lower than 30ºC (86ºF)
  • Do not keep batteries at relative humidity of 65% or above for long time
  • Up to 10-year shelf life from date of manufacture (under proper storage cond.)

Electrical Characteristics:

Unless otherwise stated, all measurements are to be performed at a Standard Environment of 20±2ºC (64.4-71.6ºF), 60±15%R.H.


Electrical Specifications

Discharge Condition

IEC60086-2:
2011
Standard

Discharge Time

Load

Test Mode

End
Voltage

Initial

 After 1 year at 20±2ºC

MAD

Normal

MAD

Normal

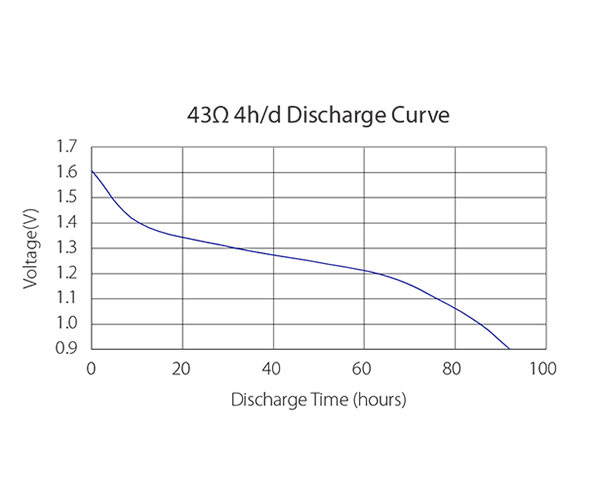

43Ω 4h/d 0.9V 60h 90h 94h 88.5h 92h

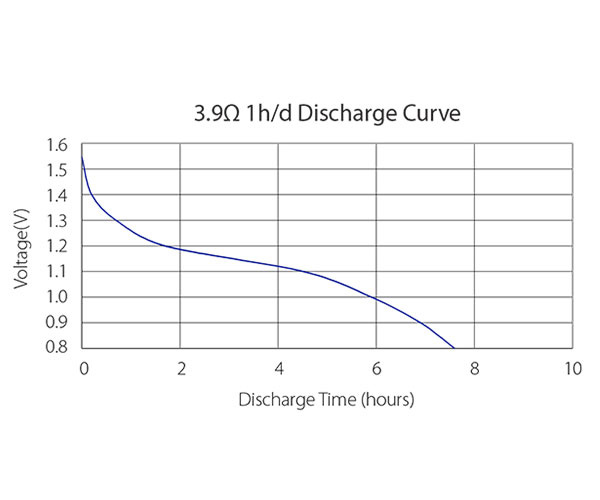

3.9Ω 1h/d 0.8V 5h 7.2h 7.6h 6.8h 7.2h

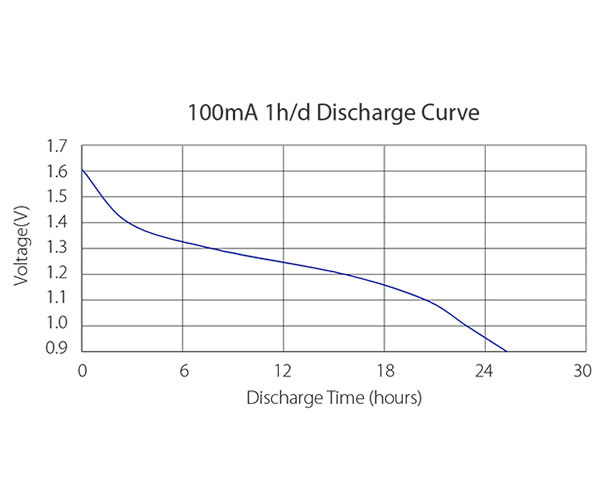

100mA 1h/d 0.9V 15h 23.6h 25.1h 22.2h 23.4h

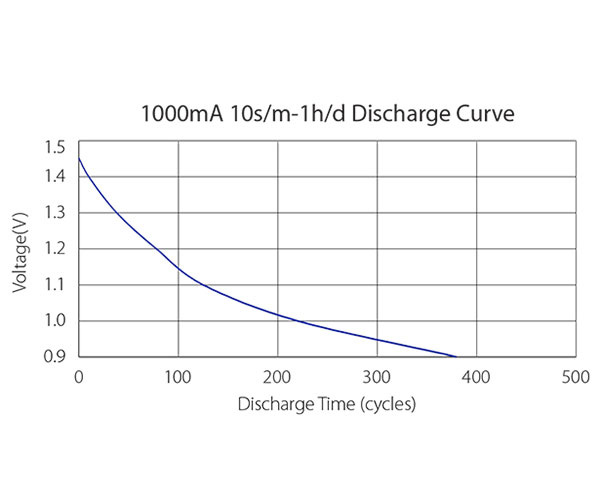

1000mA 10s/m, 1h/d 0.9V 220p 440p 440p 360p 390p

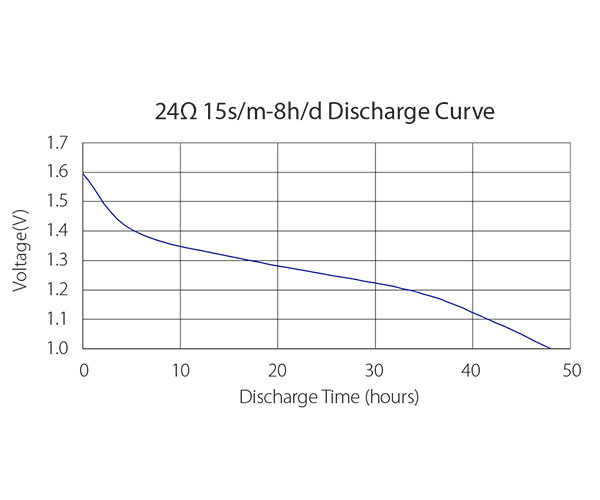

24Ω 15s/m-8h/d 1.0V 33h 45h 47.5h 43h 45h

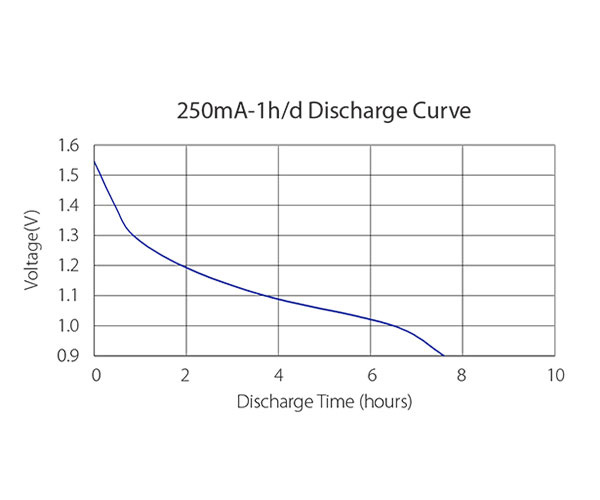

250mA 1h/d 0.9V 5h 7.2h 7.6h 6.9h 7.3h

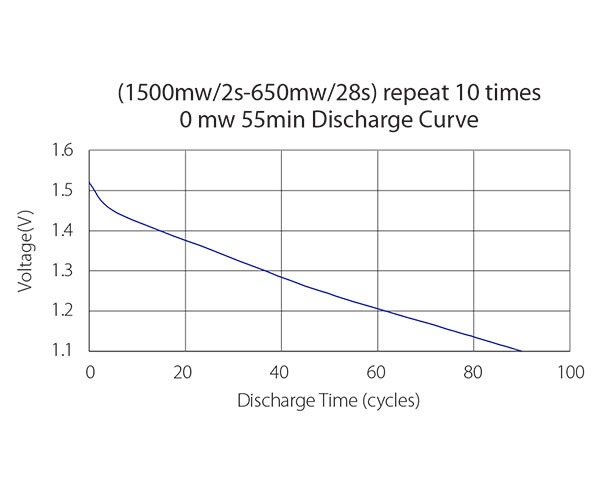

1.5-0.65W 2s/28s, 5m/h 1.05V 40p 85p 95p 75p 85p

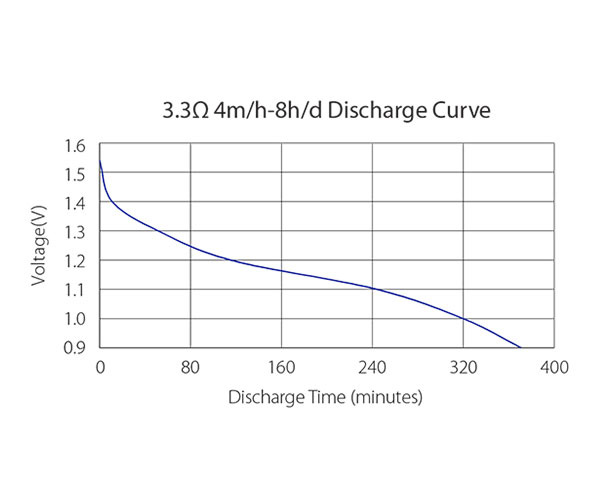

3.3Ω 4m/h-8h/d 0.9V 190m 340m 365m 320m 340m
10Ω
reference 		24h/d 0.9V / 19h 19.5h 18.5h 19h
Remarks • MAD - Minimum Average Discharge (h-hour) (d-day)
• Actual performance for each lot may be slightly different from normal performance.
