PRB9V
(9V Alkaline Battery)



Printable Version






Specifications

Type Designation ANSI-1604A, IEC-6LR61
Chemical System (-) Zn︱KOH-H2O︱MnO2 (+)
Mercury, cadmium, and lead are not added in the battery.
Nominal Voltage: 9V
Weight Approx. 45g
Nominal Capacity Approx. 1240mAh (20±2ºC, 75Ω-4h/d, e.v.=0.9V)
Jacket Foil Label

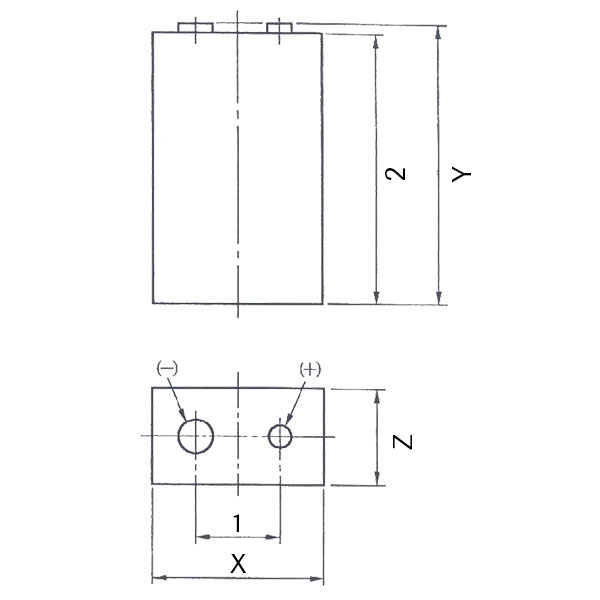

Dimensions

/ MAX MIN
mm in mm in
1 12.95 0.510 12.45 0.490
2 46.4 1.827 / /
X 26.5 1.043 24.5 0.965
Y 48.5 1.909 46.5 1.831
Z 17.5 0.689 15.5 0.610

Notes:

  • Store in cool, dry place before use
  • It is recommended that the storage temperature be lower than 30ºC (86ºF)
  • Do not keep batteries at relative humidity of 65% or above for long time
  • Up to 10-year shelf life from date of manufacture (under proper storage cond.)

Electrical Characteristics:

Unless otherwise stated, all measurements are to be performed at a Standard Environment of 20±2ºC (64.4-71.6ºF), 60±15%R.H.


Electrical Specifications

Discharge Condition

IEC60086-2:
2011
Standard

Discharge Time

Load

Test Mode

End
Voltage

Initial

 After 1 year at 20±2ºC

MAD

Normal

MAD

Normal

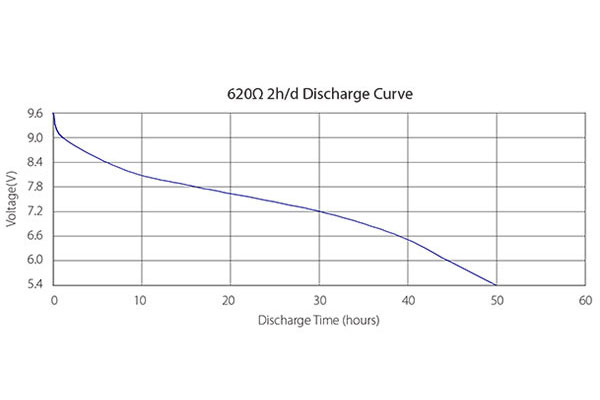

620Ω 2h/d 5.4V 33h 48h 51.8h 43.5h 48h

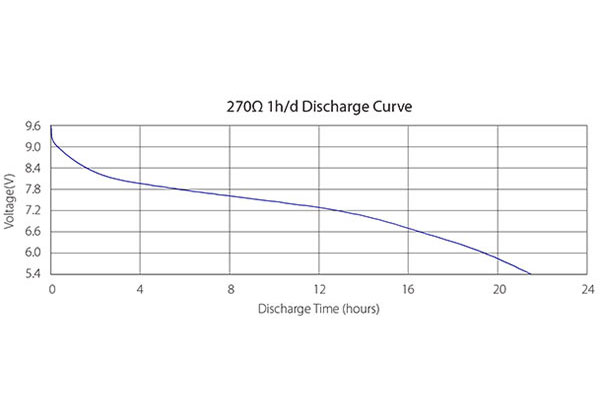

270Ω 1h/d 5.4V 12h 20h 21.5h 18.1h 20h

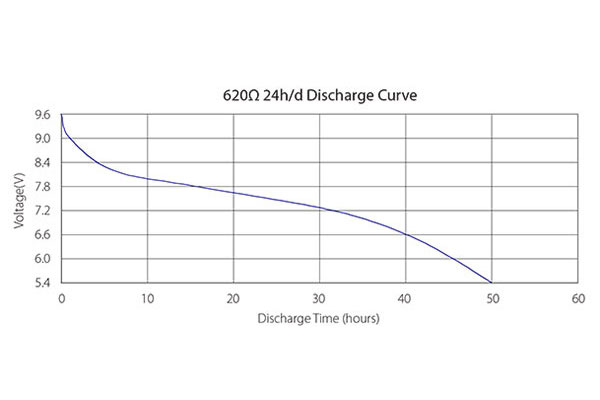

620Ω
reference 		24h/d 5.4V / 48.2h 52h 43.7h 48.2h
Remarks • MAD - Minimum Average Discharge (h-hour) (d-day)
• Actual performance for each lot may be slightly different from normal performance.
